35W Amplifier (T952E)

Details
Written by: Newton C. Braga

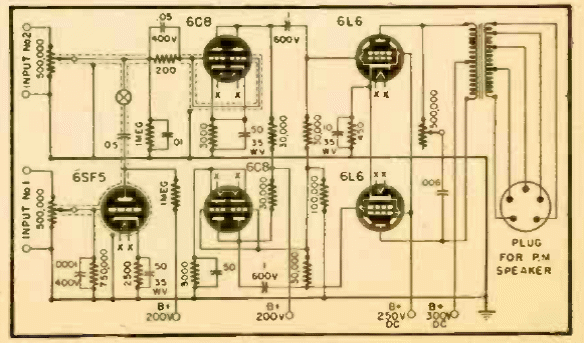

This powerful amplifier with 6L6 valves in push pull was released in Radio Craft around 1945. The circuit has a transformer with different output impedances and the power supply is not indicated.
