12W Amplifier (T799E)

Details
Written by: Newton C. Braga

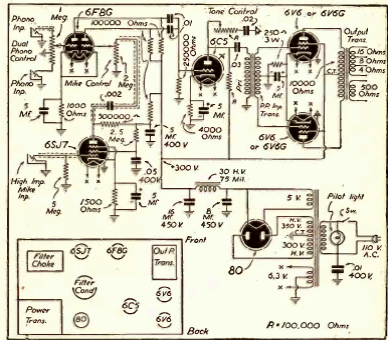

This amplifier was found in a documentation from 1941. 6V6 tubes are used in a push pull output, guaranteeing quality power. Evidently, the critical components of this assembly are the tubes and the transformers.
