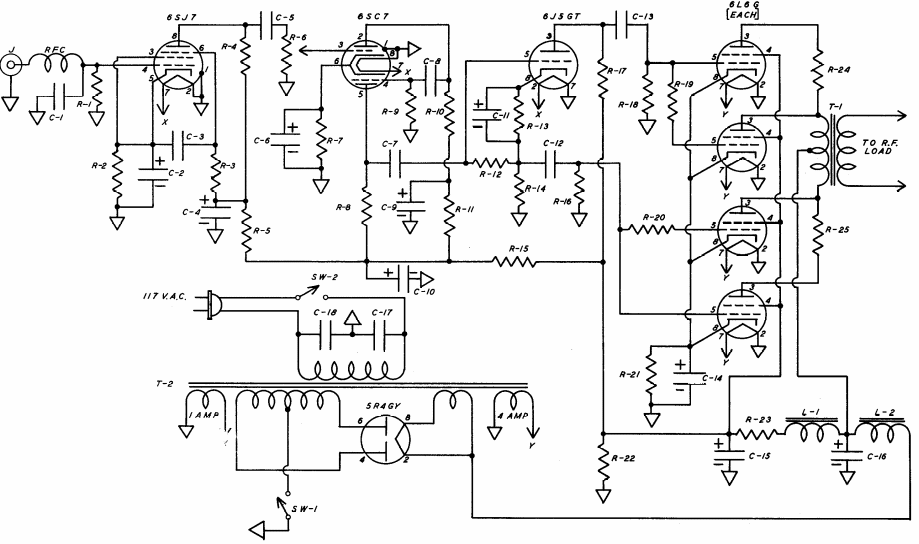

This modulator amplifier for transmitters was found in a 1947 American book. The circuit uses an output with 4 tubes connected in parallel and in push-pull.
