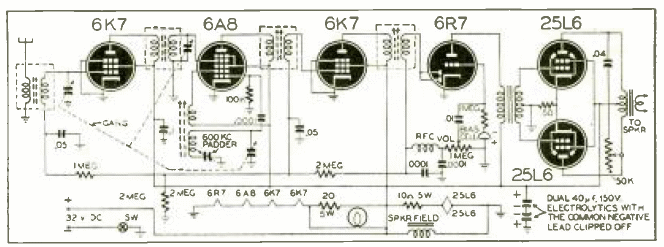

This superheterodyne 6-tube receiver was published in Radio Craft in April 1946. It was a transformerless source circuit with tube filaments connected in series. The tuned band was medium wave with speaker output.
| Clique na imagem para ampliar |
6-tube Receiver (T1027E)
- Details
- Written by: Newton C. Braga
