FM Transmitter (T742E)

Details
Written by: Newton C. Braga

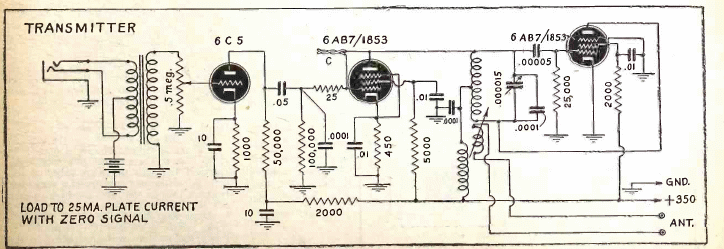

This circuit was found in a 1945 publication. The circuit was stated to be part of a walk talkie. Note that, as it is a portable assembly, it was powered by batteries. The jack was for microphone insertion.
