4 tube Receiver (T786E)

Details
Written by: Newton C. Braga

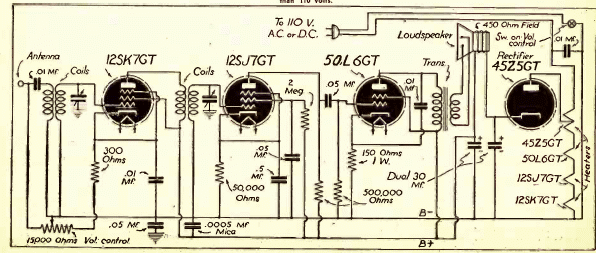

This 4-tube receiver for the medium wave range was found in a publication from 1942. The circuit still makes use of a field speaker and has the filaments fed directly by the power grid with the series connection.
