Playback Amplifier (14W)

Details
Written by: Newton C. Braga

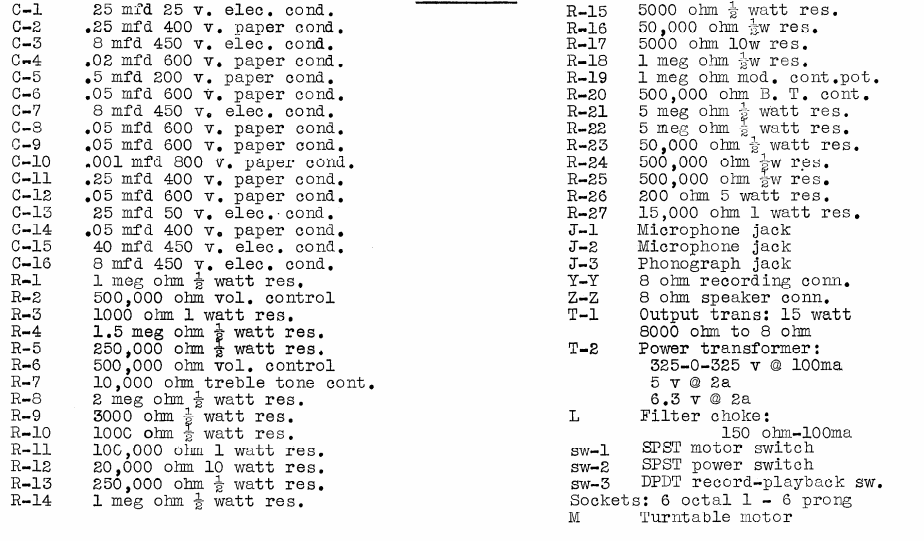

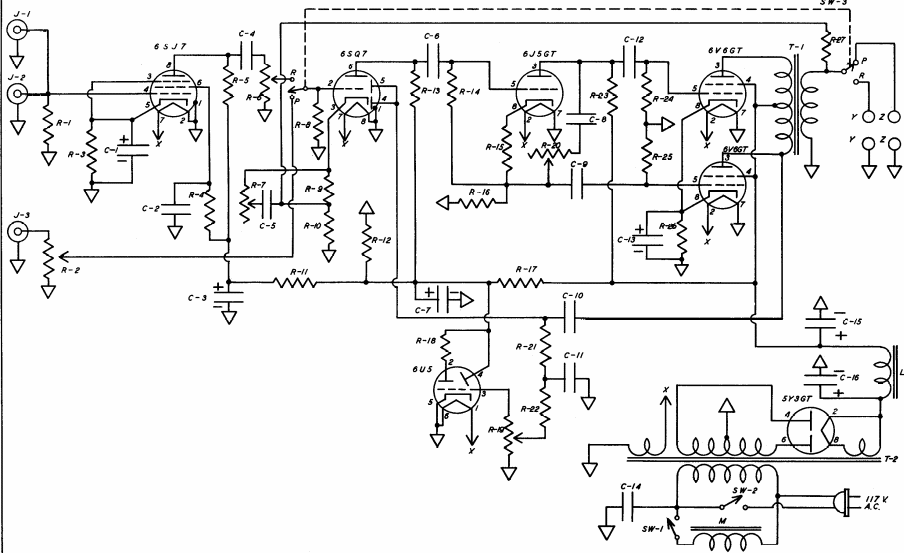

This 7-tube circuit was obtained from an American publication in 1947. The circuit has a push-pull output with a source using a transformer.
