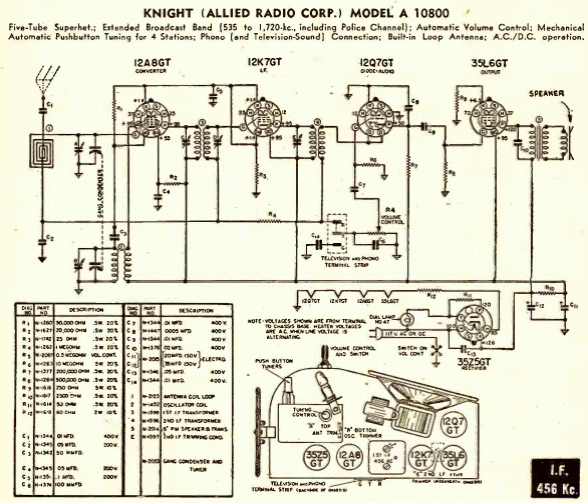

This radio from Knight of the Allied Radio Corp group is from a 1941 documentation. Note the different schematic representation, although the tubes used are well known to our tube adept friends as they became common for many years. The antenna was a loop but there was an option for an external antenna. The 455kHz IFs and speaker output.
