10W 2-tube amplifier (T820E)

Details
Written by: Newton C. Braga

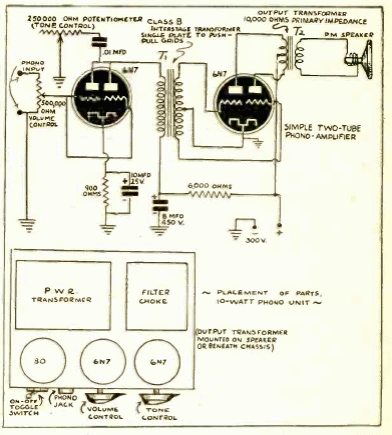

This interesting double triode amplifier configuration appeared in a 1942 publication. The circuit is not the best, as triode tubes are not suitable for power audio amplification, but it is an alternative solution suggested by the publication.
