3-tube intercom (T927E)

Details
Written by: Newton C. Braga

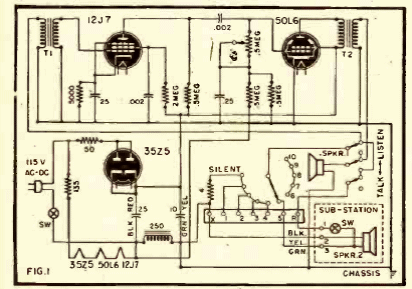

This wired intercom with several channels came out on a Radio Craft from 1945. The circuit is powered by the mains and uses the speakers themselves as microphones.
