Power supply for transmitters (T1234E)

Details
Written by: Newton C. Braga

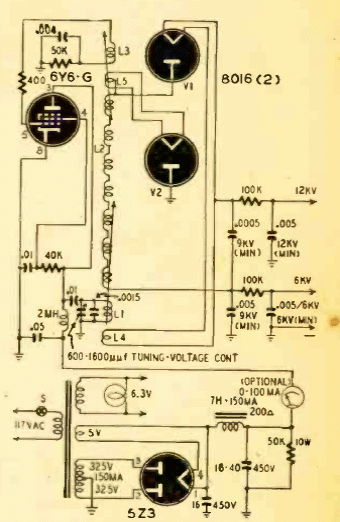

This high voltage and power power source is indicated for tube transmitters. The circuit is from a Radio Craft from February 1948. The circuit uses a voltage inverter to get the high voltage at high frequency which is rectified.
