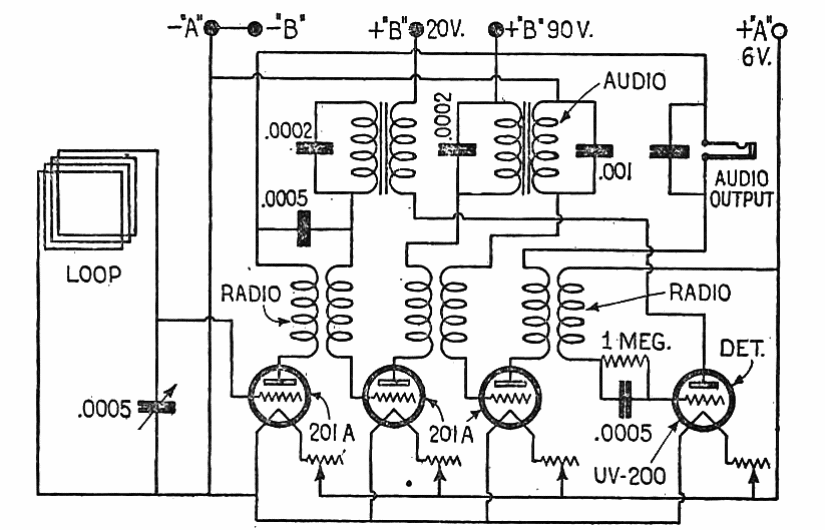

This receiver is from a 1924 publication by Gernsback. The circuit is powered by several batteries with the coils being specified according to the frequency of the received signal.
| Clique na imagem para ampliar |
4 Tube reflex receiver with loop antenna (T1570E)
