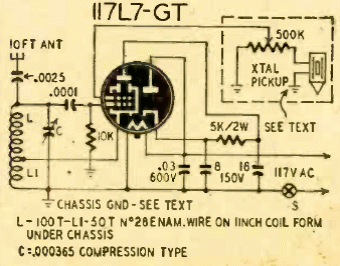

This single tube circuit is powered by the mains. We found it on a Radio Craft from November 1947. The range is medium waves, and the range is around a few tens of meters. Must be used with crystal sound pickups.
Phonograph Oscillator (T1193E)
- Details
- Written by: Newton C. Braga
