30W Amplifier (T1544E)

Details
Written by: Newton C. Braga

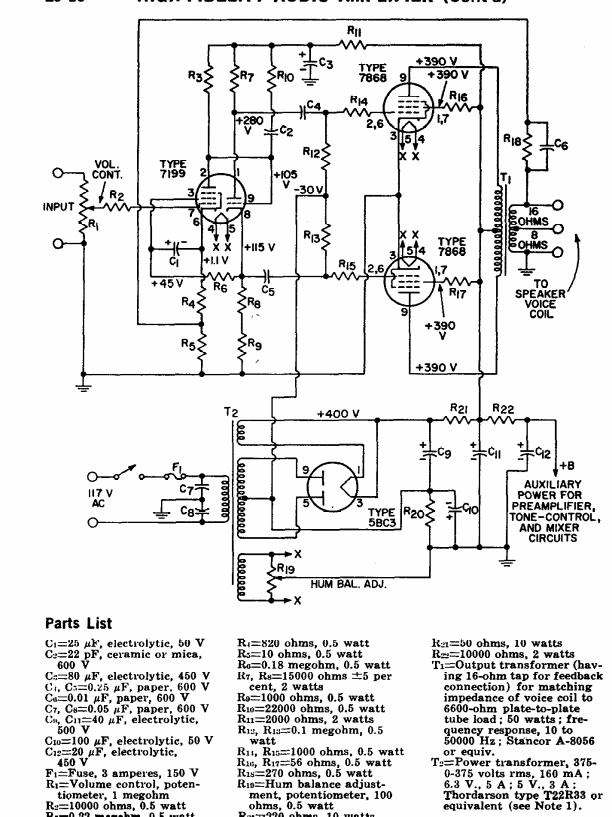

This hi-fi amplifier is from a 1975 RCA tube manual. The critical components are the transformers. Power supply is included.
