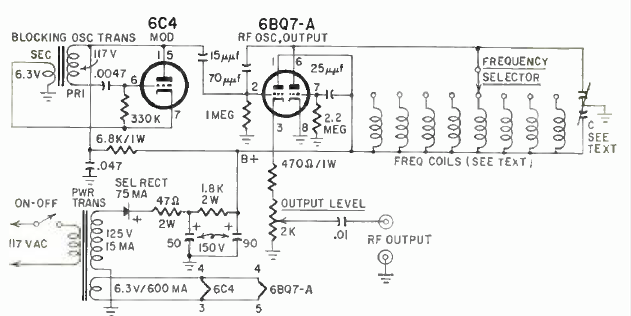

Signal generator (T1728E)

The frequency ranges of this generator are given by the coils selected by a selector. The circuit is from November 1959 Radio Electronics magazine.
