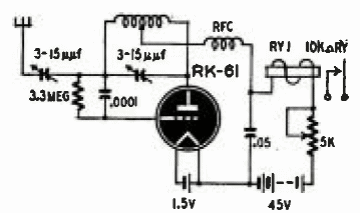

This was the simple receiver circuit for the previous transmitter. The circuit operates on two batteries and had a single tube. The relay was a sensitive type for 45V. Note the sensitivity setting. The magazine is Radio Electronics from January 1949.
