Two-tube regenerative receiver (T1595E)

Details
Written by: Newton C. Braga

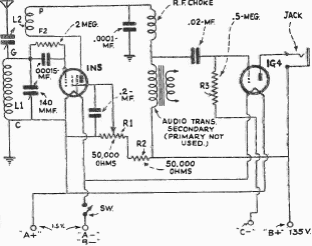

This circuit is from a Radio Electronics from 1949. The circuit is battery powered and has high impedance listening.
