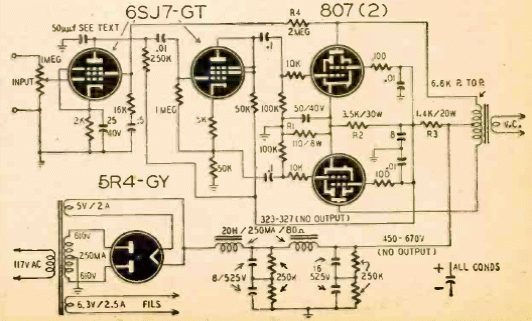

This powerful circuit with 807 tubes is from a 1947 publication. The circuit is intended for modulating powerful transmitters. The power source uses a transformer according to the power of the circuit.
30 to 45 W Amplifier (T1186E)
- Details
- Written by: Newton C. Braga
