two-tube preamplifier (T1689E)

Details
Written by: Newton C. Braga

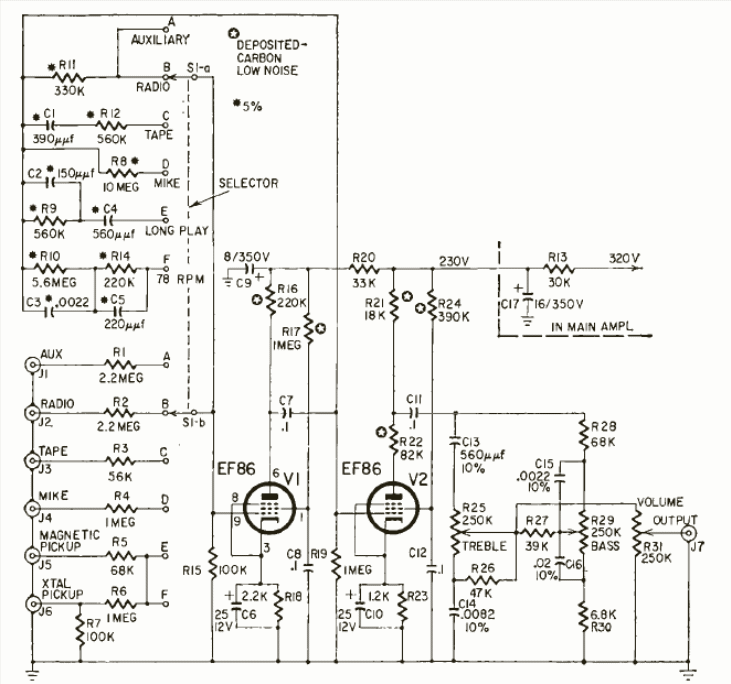

This excellent tube preamplifier was found in Radio Electronics magazine from July 1958. The power supply was not included. The circuit has several inputs.
