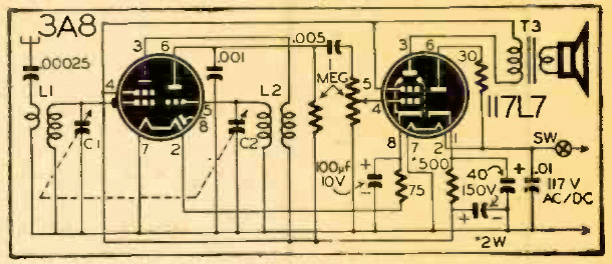

Mains powered, this simple 2-tube receiver had a speaker output. The circuit is from a 1947 Radio Craft. Note that the tubes are double tubes meaning the circuit is for 4 tubes.
2-tube Receiver (T1179E)
- Details
- Written by: Newton C. Braga
Mains powered, this simple 2-tube receiver had a speaker output. The circuit is from a 1947 Radio Craft. Note that the tubes are double tubes meaning the circuit is for 4 tubes.
