12W Phonographic Amplifier and Compressor (T499E)

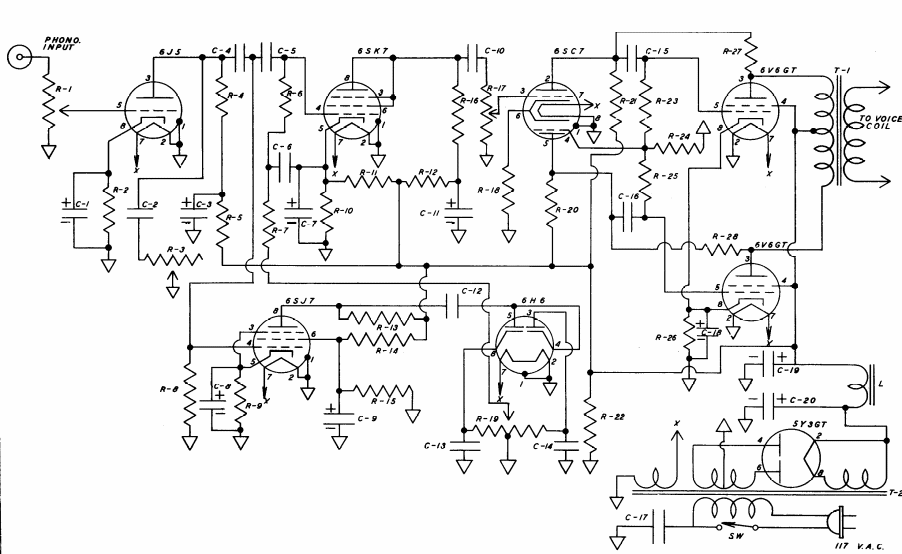

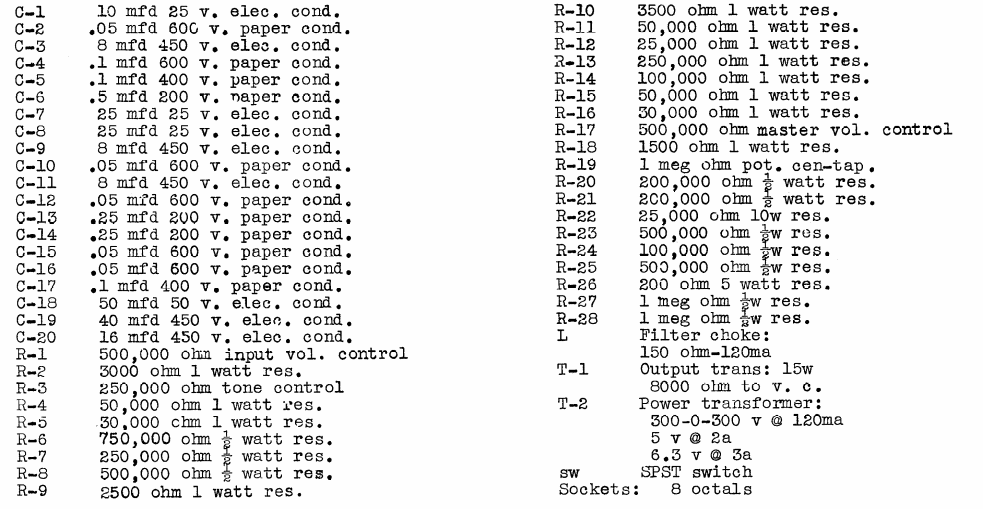

This 8-tube amplifier with 12 W output was found in an American publication from 1947. The output is in counterphase with pentode tubes.
