Super-ear (T785E)

Details
Written by: Newton C. Braga

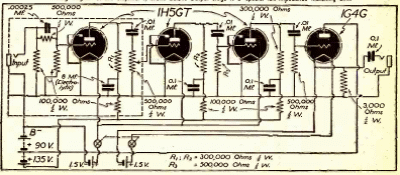

Announced as a plane detector in World War II, this circuit was intended to locate distant enemy planes by sound, since radar was still precarious at the time. The 4-tube circuit had an headphone output and was powered by batteries.
