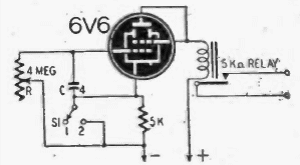

This delay circuit was found on a Radio Craft from 1946. The relay is a high voltage relay, as used at the time. The capacitor determines the delay time. The supply voltage depends on the relay used.
Delay circuit (T1144E)
- Details
- Written by: Newton C. Braga
