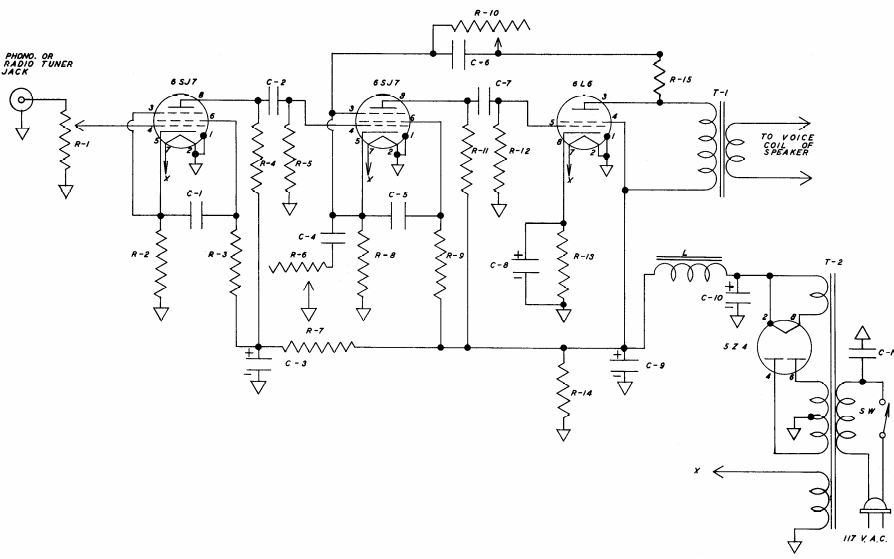

6W HiFi Amplifier (T479E)

Details
Written by: Newton C. Braga



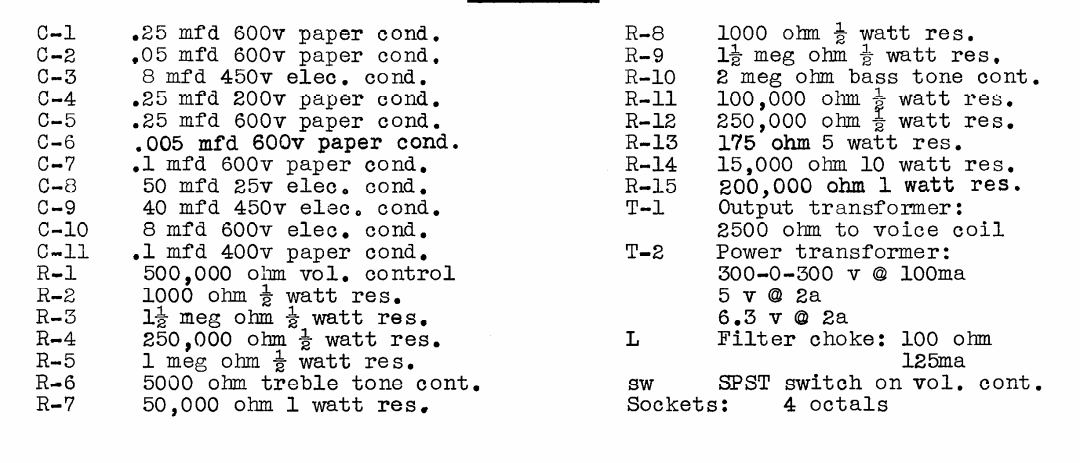

Found in an American publication from 1947, this 4-tube amplifier has excellent sound quality. Its source makes use of a transformer.
