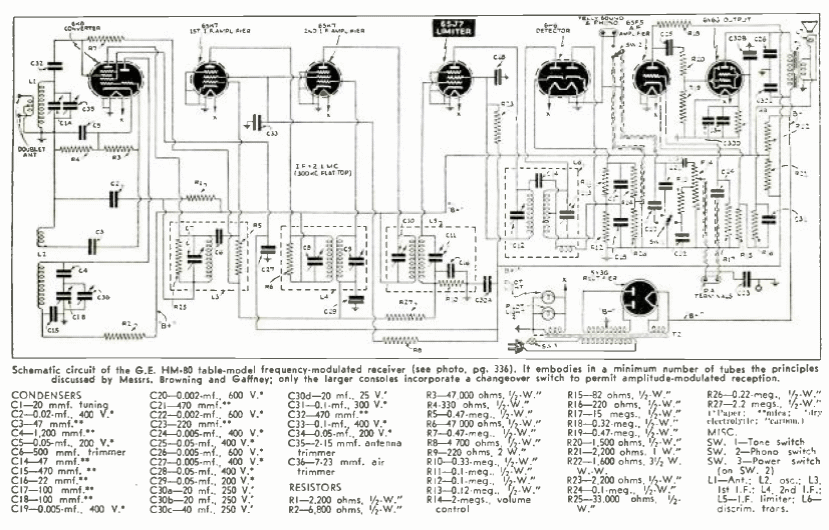

This is perhaps one of the first published FM receiver circuits. We found it on Radio Craft in December 1939. The 8-tube circuit had a very interesting configuration which, according to the author of the project, was a configuration with as few tubes as possible. It is useful as a reference or for any restoration work.
| Clique na imagem para ampliar |
