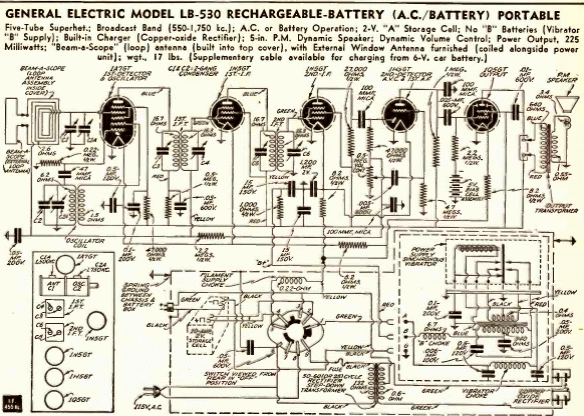

An interesting commercial receiver idea from 1941. The 5-tube medium wave circuit was powered both by the mains and by rechargeable batteries with a recharging circuit. The antenna was a frame and the IF of 455 kHz. Good volume output was obtained from a loudspeaker.
