1944 5-tube radio (T876E)

Details
Written by: Newton C. Braga

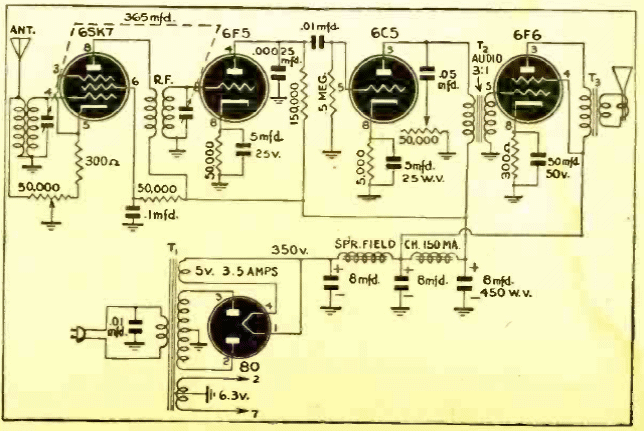

This circuit was found in a documentation of the time. It consists of a receiver with two RF stages for the medium wave band. The audio power is on the order of 2 W.




| Clique na imagem para ampliar |
