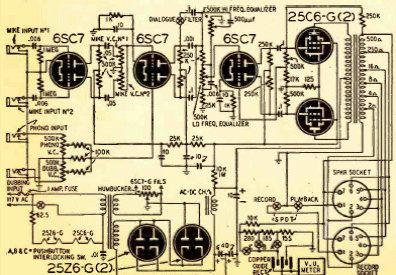

This 7-tube circuit with outputs with different impedances for an ambient system was found in a Radio Craft from 1947. The circuit has good power and several inputs for different signal sources.
Surround Sound Amplifier (T1124E)
- Details
- Written by: Newton C. Braga
