13W Amplifier (T486E)

Details
Written by: Newton C. Braga

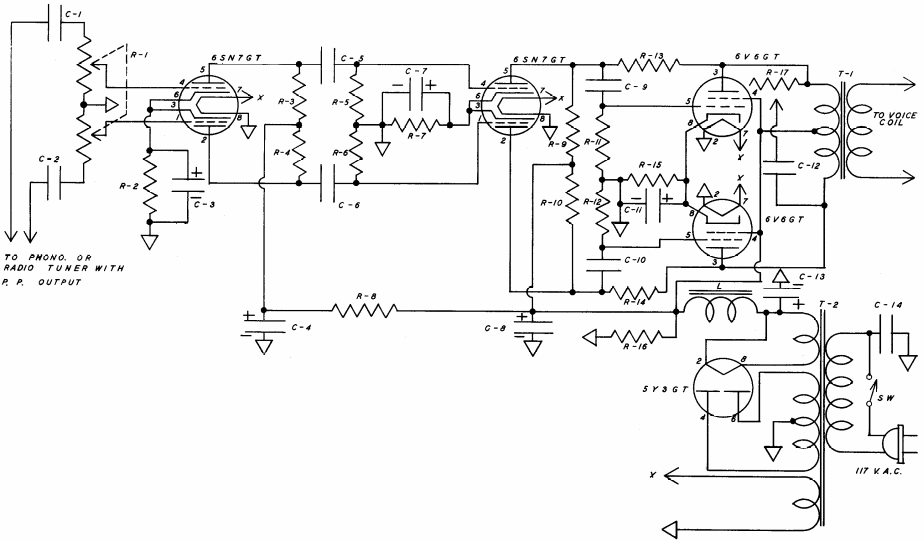

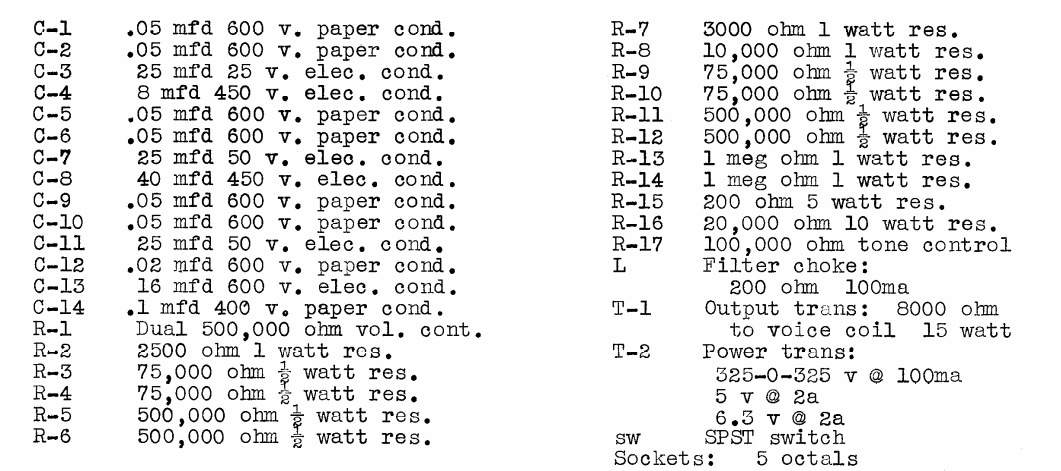

This 5-tube hi-fi amplifier was found in an American publication from 1947; The output is in class B and the circuit uses a source with transformer.
