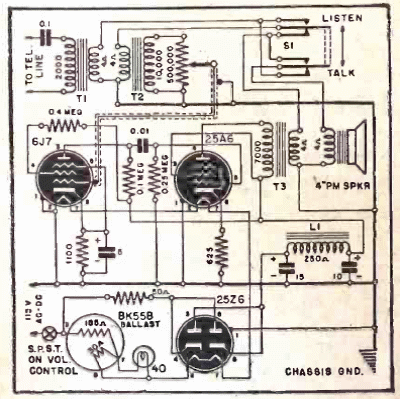

This wired intercom with multiple branches was found in a 1944 publication. The 3-tube circuit is powered directly from the mains. See the use of a resistor tube to reduce voltage to the filaments.
Tube intercom (T735E)
- Details
- Written by: Newton C. Braga
