RF and FI Oscillator (T727E)
- Details
- Written by: Newton C. Braga

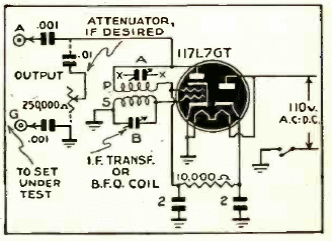

Found in a 1943 publication, this simple 117V filament tube oscillator serves for bench-top adjustments of the RF and IF stages of a radio. The circuit is quite simple.
