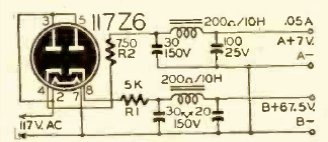

This simple power source for tubes was found in documentation from 1946. As it does not use a transformer, it must be used with care. The output voltages are for the 110 V (117 V) network.
Power supply for tubes (T1064E)
