Multipurpose Tester (T1044E)

Details
Written by: Newton C. Braga

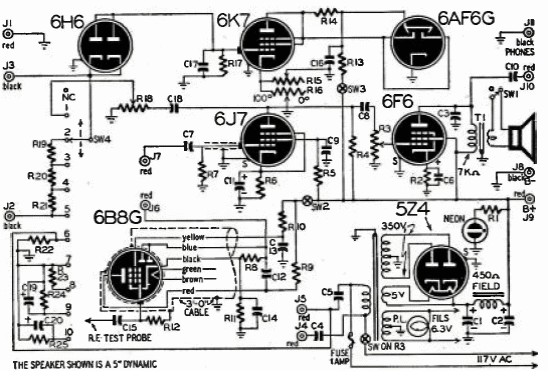

This shop tube circuit was found in a May 1946 Radio Craft. It contains several bench test features such as resistance, voltage and current meters as well as a signal tracer. The magazine explained how to buimd.
