Phase Inverter (T1089E)

Details
Written by: Newton C. Braga

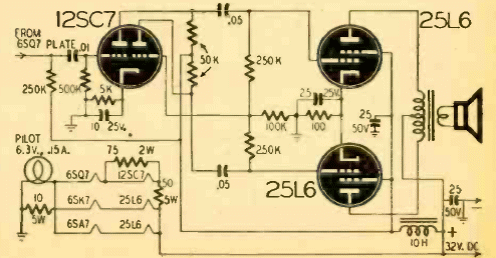

This amplifier uses a different phase inverter configuration for push-pull output. The circuit is from a Radio Craft of September 1946.
