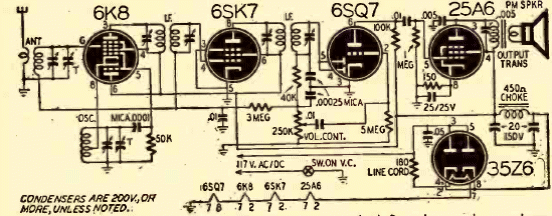

This circuit is from a publication of 1947. It is a receiver with a typical configuration of the time for medium wave reception. The receiver has a transformerless power source with the heaters in series.
5-tube Radio (T1124E)
- Details
- Written by: Newton C. Braga
