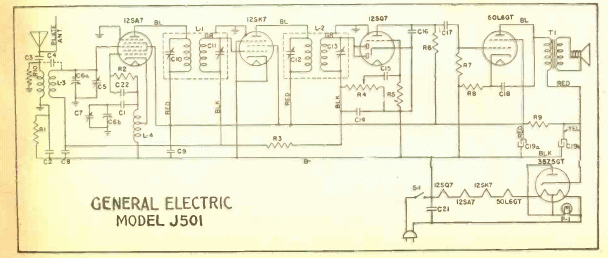

This circuit was published in a 1943 magazine serving as a repair guide. It consists of a typical AC-DC receiver without power transformer for the medium wave band. A configuration that has become common for many years.
General Electric Receiver Model J501 (T850E)
