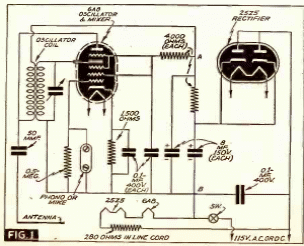

This mains powered circuit was found in documentation from 1941. The circuit operates in the medium wave range or according to the oscillating coil and has a range of a few meters. Note the use of a dual rectifier tube. The oscillator is the type normally used in common radios as a converter.
