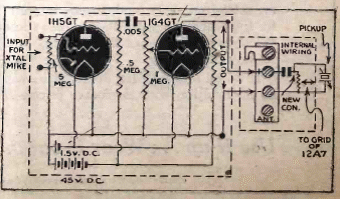

This two-tube circuit was found in a Radio Craft from 1944. The power is supplied by battery, perhaps to obtain less noise. The circuit is indicated for an RCA amplifier of the time.
Phonograph Preamplifier (T894E)
- Details
- Written by: Newton C. Braga
