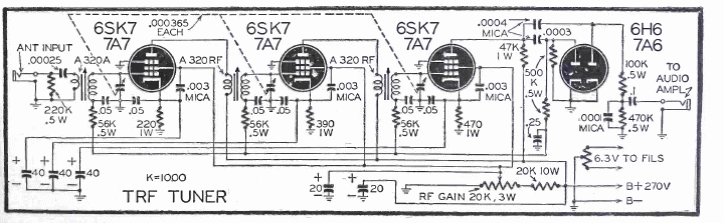

This is a type of circuit that was popular in the 1940s. It was a tuner that received and tuned radio stations to play their signals in a common audio amplifier. This was found in a 1946 publication. The power supply was usually drawn from the amplifier itself.
