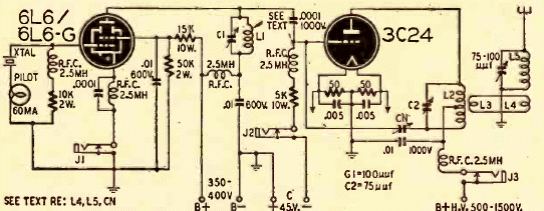

This circuit for radio amateurs in the ranges of 80 to 20 meters was found in a Radio Craft from January 1947. The circuit has a power of a few tens of watts and needs to be powered with the voltages indicated in the diagram.
Medium Power Transmitter (T1121E)
- Details
- Written by: Newton C. Braga
