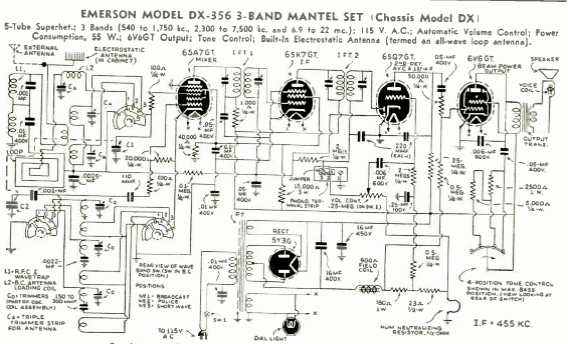

This 3-band commercial receiver is from the 1940's. With 5 tubes it was mains powered with excellent sensitivity. The configuration became common on receivers for years after that time because of its simplicity and sensitivity. Note the use of a transformer on the supply with a full wave rectifier tube.
