Intercom Amplifier (T475E)

Details
Written by: Newton C. Braga

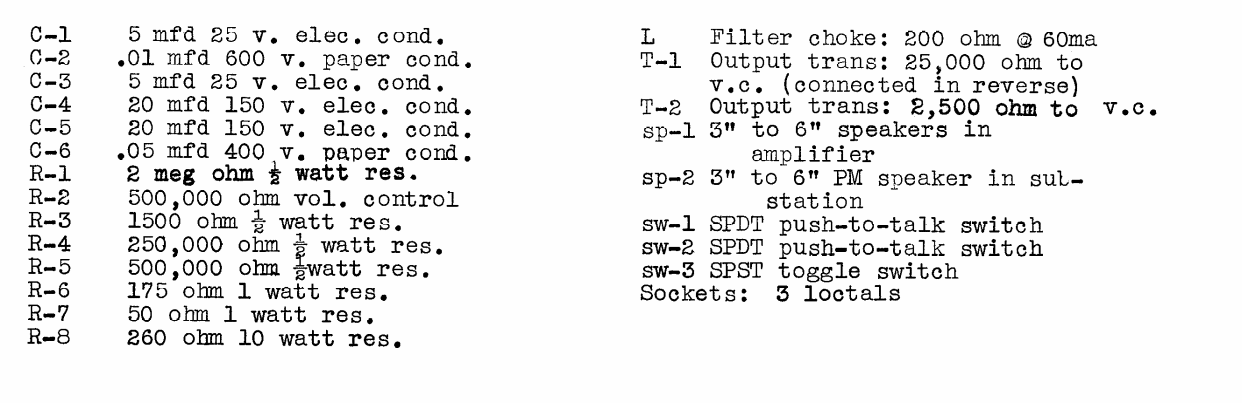

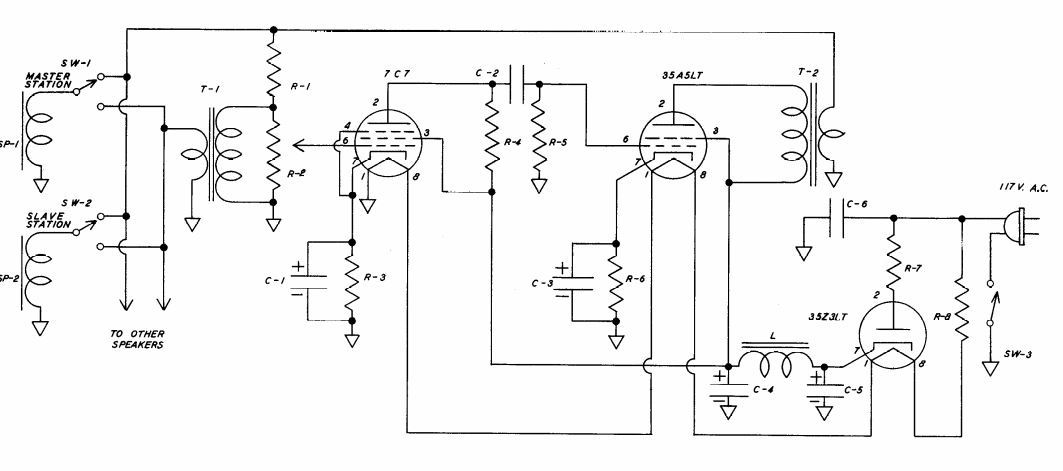

This 1.5W tube amplifier was found in an American documentation from 1947. It is a direct rectification circuit without the need for a power transformer.
