Short Wave Converter (T987E)

Details
Written by: Newton C. Braga

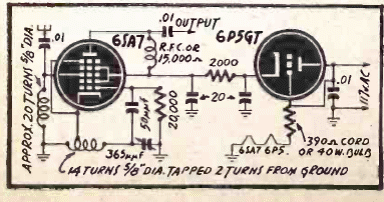

The conversion range of this circuit depends on the coil. The circuit uses two tubes, and the power supply is not provided.
