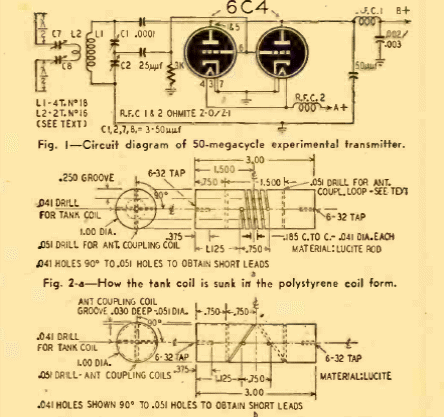

This circuit was found on a Radio Craft from May 1947. The tube is still well known today. Due to the operating frequency, the circuit is critical. The power supply was not given.
Experimental transmitter for 50 and 420 MHz (T1134E)
- Details
- Written by: Newton C. Braga
