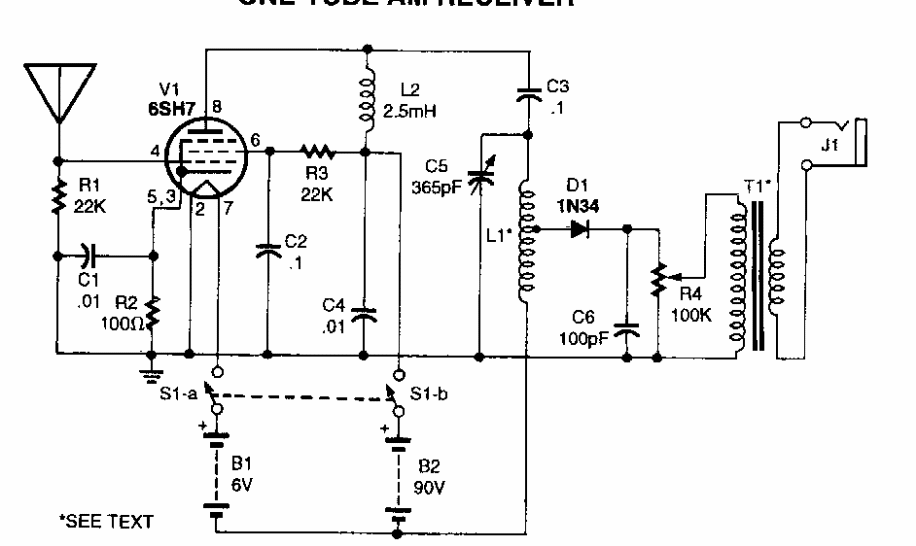

This receiver was found in a Popular Electronics from the 90's. Its different configuration shows a tuning circuit after the tube that works as an aperiodic amplifier. Observe supply voltages.
