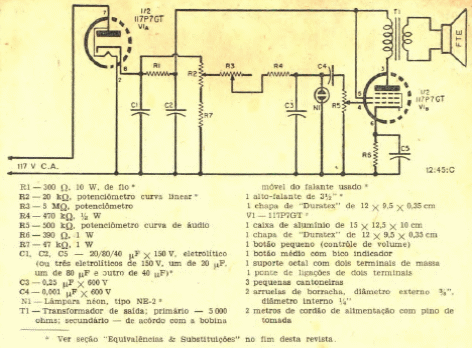

Found in a June 1960 Popular Electronics magazine, this circuit uses a double tube, one part being the transformerless power supply rectifier. Frequency depends on C1. The circuit has good power.
Neon metronome (T508E)
- Details
- Written by: Newton C. Braga
