Intercom (T888E)

Details
Written by: Newton C. Braga

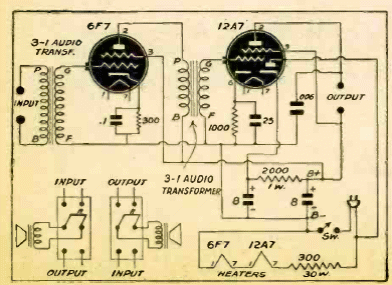

This two-tube intercom was found on a Radio Craft from 1944. The circuit is mains powered and employs high impedance speakers.
