Transtron Oscillator (T938E)

Details
Written by: Newton C. Braga

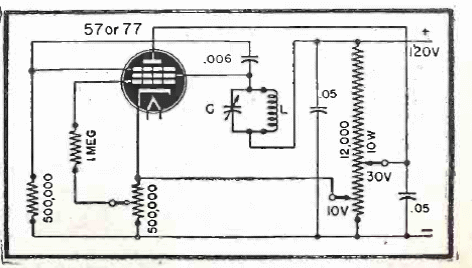

No, there was still no transistor. The name is given to an oscillator configuration with negative resistance. Typical circuit using tube is shown below. We found it in a publication from 1945.
