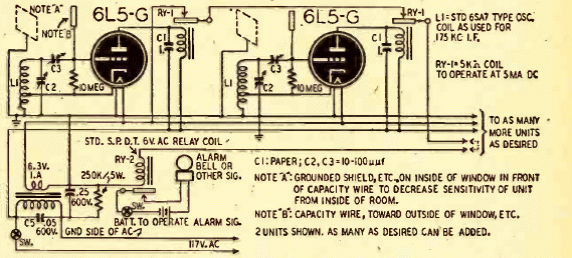

This capacitive intruder alarm was found on a Radio Craft from January 1947. The circuit uses metal plates as sensors, and the connecting cables to them must be short. The relays are high voltage, and the power is supplied from the mains with a transformerless source.
