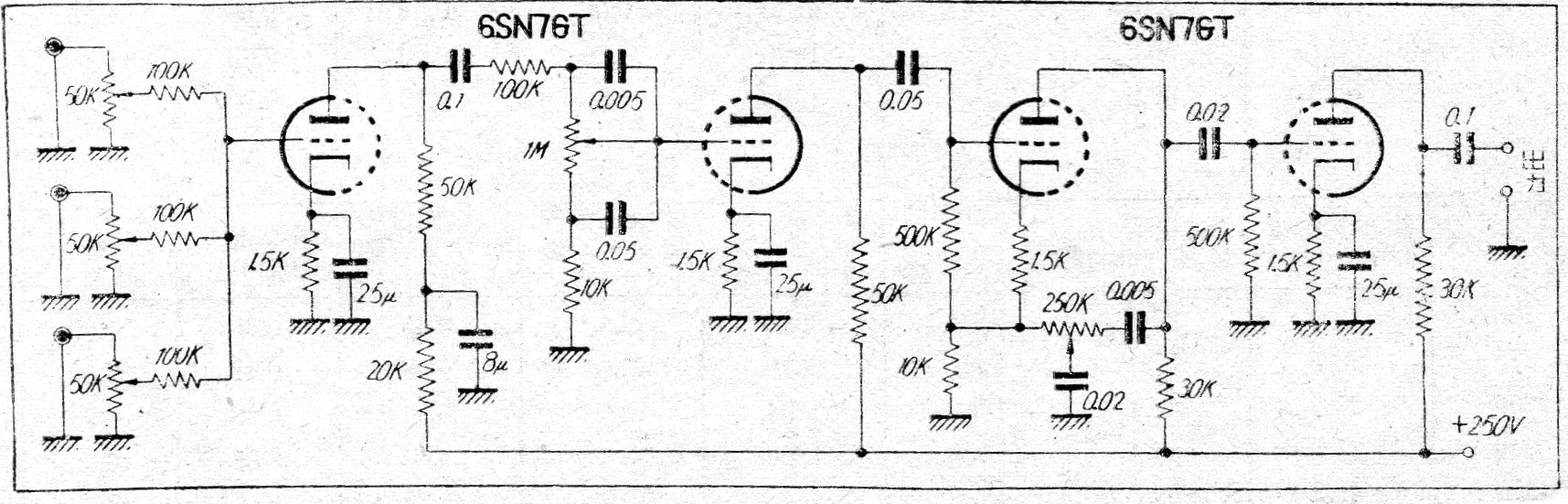

This is a simple tubed mixer from the 50's. The circuit does not include the power supply and has 3 inputs with independent controls. The tubes are double and the inputs are high impedance.
